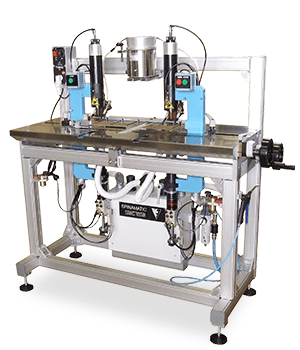

SPINAMATIC

Drilling and/or Pinning of Drillstacks.

• Compact and Robust
• High productivity
• Easy to operate[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

OPERATION

– Drilling & Pinning simultaneously

– Spindle/Cylinder positioning by Handwheel using accurate

Mechanical Counters
– Mechanical securing of Spindle/Cylinder position
– Hydraulic Brakes for Z-Axis damping feed (fast approach, regular feed, no exit burr)
– Automatic Pin Feed

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

SPECIFICATIONS

  • 2 drilling & pinning heads (1 left, 1 right)
  • Machine dimensions: 1.610 x 750 x 1.500mm (L 63.4 x D 29.5″ x H 59.1″)
  • Weight: 238kg (525 lbs)
  • Pin length: 18-20mm (0.70″ – 0.79″)
  • Pin diameter: 3.0 – 3.175mm – 4.0-5.0mm (0.12″ – 0.125″ (1/8″) – 0.158″ -0.197″)
  • Working range: Max 700 x 700mm (27.6″ x 27.6)

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

WORKING CYCLE

– Reinforced cylinder for high stacks
– Automatic axes positioning
– 3rd hole anti rotation device
– Electronic cycle counter
– Guillotine for vacuum cut

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

EXTRA FOR MULTILAYER PINNING

Lowering Drill Spindle to set Pin Centering Device instead (No Drilling, just Pinning, see image 1).
