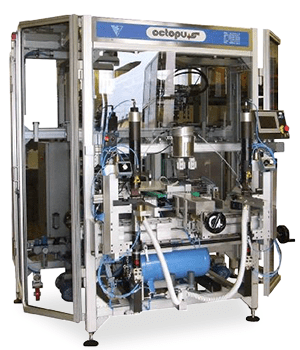

OCTOPUS

Automatic stack preparation.

• Automatic unloading
• Automatic drilling, pinning & taping
• Rotation device for automatic 4 sides taping

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

OPERATION

– Drilling, Pinning & Taping simultaneously on pin sides
– Additional Taping only on long sides
– Spindle/Cylinder positioning by Handwheel using accurate

Mechanical Counters
– Pneumatic securing of Spindle/Cylinder position
– Hydraulic Brakes for Z-Axis damping feed (fast approach, regular feed, no exit burr)
– Automatic Pin Feed
– 4 Taping Heads (2 left, 2 right) with adjustable distances between tapes
– Adjustable Tape Length on Entry Material

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

SPECIFICATIONS

  • 2 Drilling & Pinning Heads (1 left, 1 right)
  • 4 Taping Heads (2 left, 2 right)
  • Dimensions:  L 78.7″ x D101.3″ x H84.6″  (2000 x 2572 x 2150 mm)
  • Weight:  2237lbs (1015kg)
  • Max stack dimensions:  26.4″ x 21.10″ (670 x 535mm)
  • Min stack dimensions:   13.8″ x 15″ (350 x 380mm)
  • Pin length: 0.7″ – 0.8″ (18-20mm)
  • Pin diameter: 0.12″ – 0.125″ (1/8″) – 0.16″ – 0.2″ (3.0-3.175mm – 4.0 – 5.0mm)
  • Installed power: 1 Kw (11 NL/S)
  • Output: 150 stacks/hour

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

WORK CYCLES

– Drilling – pinning – taping – stacking
– Pinning – taping – stacking (multi layer)
– Drilling – pinning with manual unloading
– Pinning with manual unloading (multi layer)

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

EXTRA FOR MULTILAYER PINNING

Lowering Drill Spindle to set Pin Centering Device instead (No Drilling, just Pinning & Taping, see image 1).
