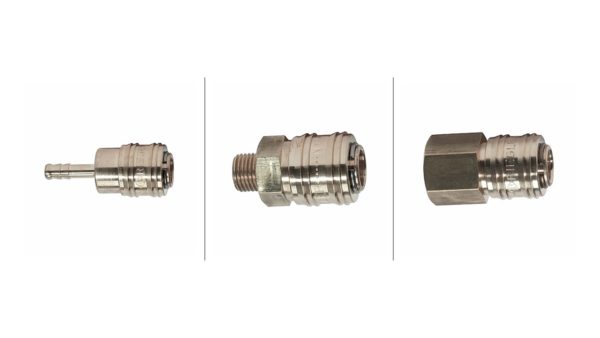

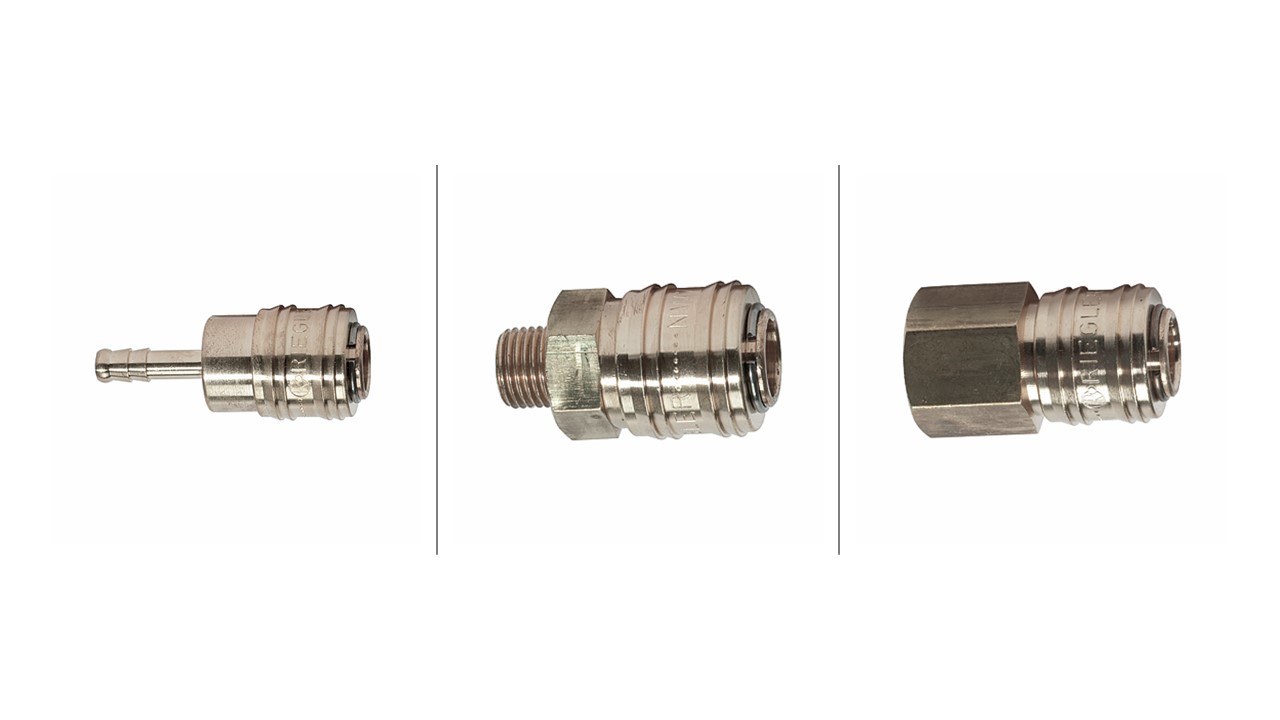

Quick release coupling

Quick release coupling

Universal one-hand quick release coupling in one-sided shut-off design
SKU: N/A Categories: ,

Description

Quick release coupling NW 7.2, bright brass

  • Operating pressure 0 – 35 bar
  • Medium / ambient temperature -20 ° C to 100 ° C

The closed locking sleeve prevents soiling of the internal parts.

Couplings and nipples with sealing thread coating:

Ready-to-install polyacrylate thread coating for immediate and high tightness without a hardening process.
The permanently elastic sealing material can be readjusted up to 45 ° without affecting the tightness.
No risk to health.
Easy assembly and disassembly.

This quick release coupling is not suitable for direct mounting on pulsating tools.

PRODUCT SPECIFICS

CONNECTION:   External thread G1 / 4 AG, external thread G3 / 8 AG, internal thread G1 / 4 IT, internal thread G3 / 8 IT, grommet LW6, grommet LW9

Additional information

Connection

Male thread G1/4 AG l External thread G3/8 AG l Internal Thread G1/4 IT l Internal thread G3/8 IG l Grommet LW6 l Grommet LW9
