Description

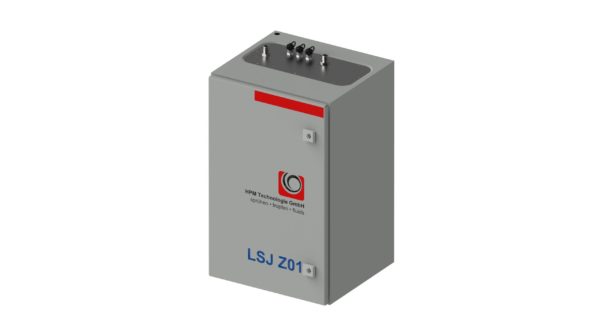

LSJ Z01
Internal and External Lubrication
- Universal device for internal and external lubrication
- Cooling channel cross-section at the exit of the tool from 0.6mm2 to max. 50mm2
- Spindle size up to max. HSK 63
- Manual setting of the parameters via the pressure regulator
- Visual level monitoring
- Adjustment of the aerosol saturation via 1 nozzle
- Switching on and off via the customer’s machine
- Device built into the control cabinet
- Container content 6 liters (max. Capacity 4 liters)
Accessories and options:
- Aluminum base frame
- Level sensor with 3 contacts
- Automatic filling 20 liters via the customer’s PLC or HPM Ecmos 2.0
- HPM Ecmos 2.0 with plug-in power supply 24 V
- Nozzles for external lubrication (if internal lubrication is not possible)
- Expandable with high pressure module for doubling the hall network pressure
PRODUCT SPECIFICS
PRESSURE ON THE TOOL : 14 – 15.5 bar – depending on the cooling channel cross-section and viscosity of the liquid
AEROSOL DISCHARGE: Ø10mm (NW 8)
PRESSURE AREA: 6 – 16 bar
COMPRESSED AIR CONNECTION: Ø 10 mm (NW 8)
AIR SUPPLY: Min: 250 NL / min
Ideal: 1200
NL / min Max: 3000 NL / min
Ideal: 1200
NL / min Max: 3000 NL / min
POWER SUPPLY: 24 V (control signal via machine)
POWER CONSUMPTION: 0.5 A
COMMUNICATION: 24 V DC
